Orbit

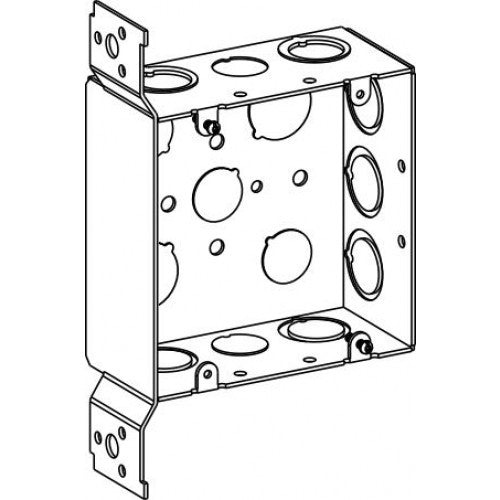

5SDB-MKO-FB 2-1/8” Deep, 4-11/16” Square (5S) Box Welded With MKO & FB Bracket
5SDB-MKO-FB 2-1/8” Deep, 4-11/16” Square (5S) Box Welded With MKO & FB Bracket
| Category | SWITCH BOX |
| Page | A17 |
| Barcode | 8-35243-00119-0 |
| Features: | |
| - FB Bracket for offset mounting on flat side of stud or joist | |
| Dimensions: | |
| Width | 4-11/16" |
| Height | 4-11/16" |
| Depth | 2 - 1/8" |
| Cu In | 42.0 |
| Specifications: | |
| Material | 16 GA Sheet Steel |
| Mfg. Process | Welded |
| Color | Galvanized |
| Bracket | FB, Flush |
| KO Sides | (2) - 1/2", (7) - MKO |
| KO Bottom | (3) - 1/2", (2) - 3/4" |
| Packaging Info: | |
| Std Pkg | 24 |
| Weight | 29 lbs |
| Certifications: | |

|
|
