Mersen

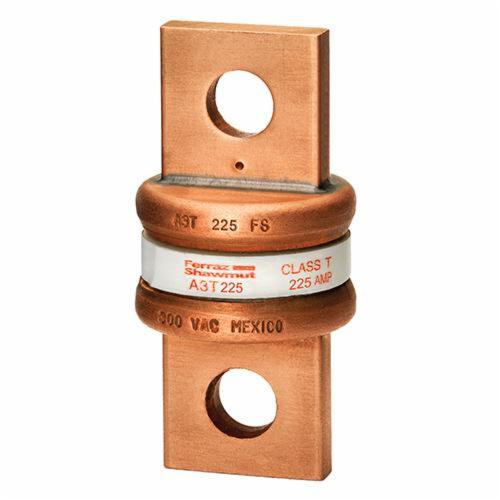

A3T225 300V 225A Class T Fuse
A3T225 300V 225A Class T Fuse
A3T225
225 Amp, 300 Volt
Fuse Amp-Trap® 300V 225A Fast-Acting Class T A3T Series
APPROVALS & STANDARDS
- UL listed to standard 248-15 File E2137
- CSA certified to standard C22.2 no. 248.15
- DC listed to UL standard 248
KEY FEATURES & BENEFITS
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
- Extremely current-limiting for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Blade-stamped catalog numbers for permanent identification
- Small physical size for greater design flexibility
APPLICATIONS
- Load centers
- Panelboards
- Switchboards
- Circuit breakers
- Metering centers
