Mersen

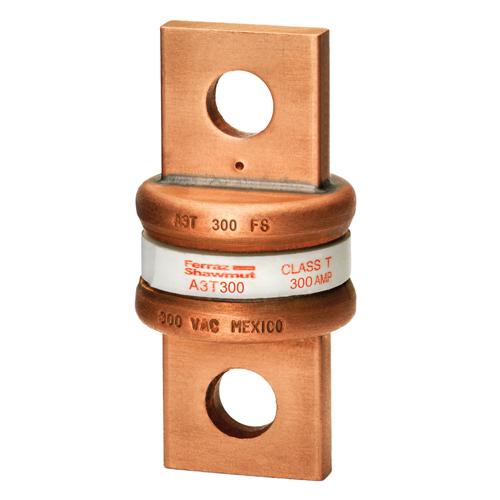

A3T300 300V 300A Class T Fuse

A3T300 300V 300A Class T Fuse

Call For Pricing and Availability (909) 874-1131

A3T300

300 Amp, 300 Volt

Fuse Amp-Trap® 300V 300A Fast-Acting Class T A3T Series

APPROVALS & STANDARDS

  • UL listed to standard 248-15 File E2137
  • CSA certified to standard C22.2 no. 248.15
  • DC listed to UL standard 248

KEY FEATURES & BENEFITS

Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

  • Extremely current-limiting for low peak let-thru current
  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Small physical size for greater design flexibility

APPLICATIONS

  • Load centers
  • Panelboards
  • Switchboards
  • Circuit breakers
  • Metering centers
