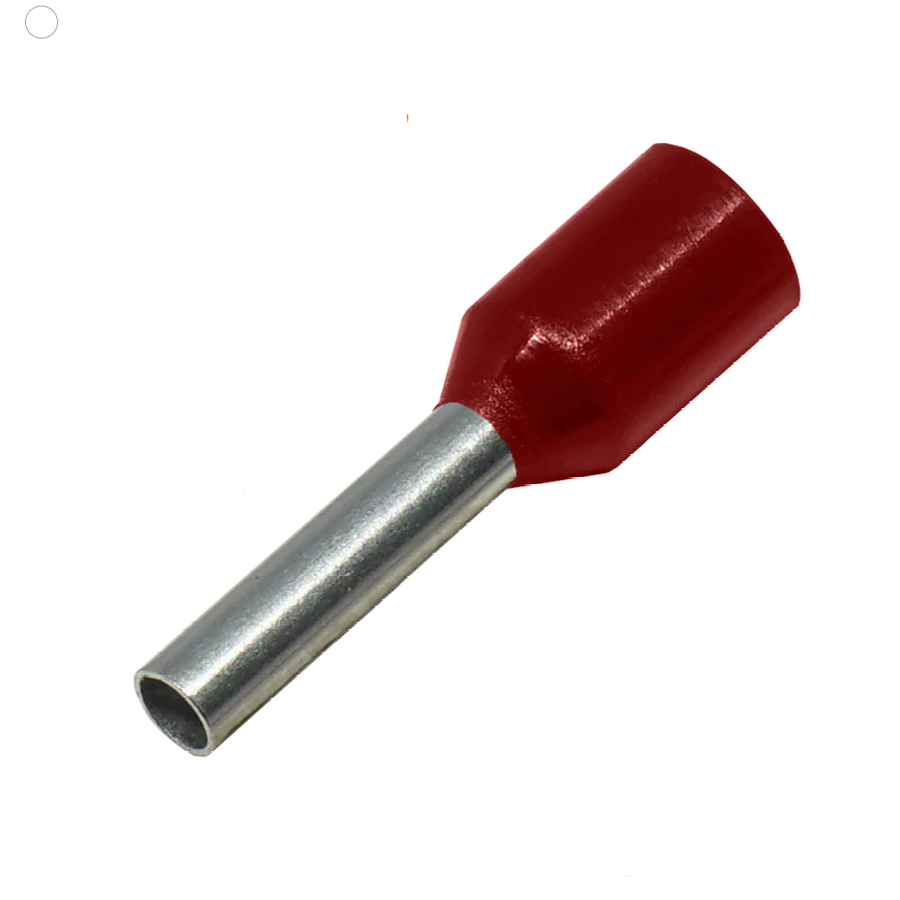

AW15008 16AWG (8mm Pin) Insulated Ferrules - Red
AW15008 16AWG (8mm Pin) Insulated Ferrules - Red
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 16 AWG |
| Color: | Red |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 18A |
| L1: | 14.5mm (0.57") |
| L2: | 8.0mm (0.31") |
| D: | 2mm (0.07") |
| D1: | 1.7mm (0.06") |
| D2: | 3.5mm (0.13") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
