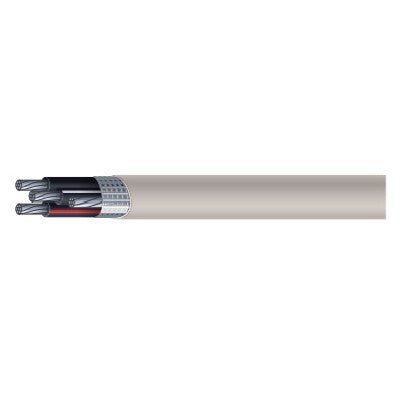

SER-4/0-4/0-4/0-2/0 Aluminum Service Entrance Cable

APPLICATION: Aluminum SER cable is primarily used as panel feeder in multiple unit dwellings and for branch circuits. Maximum operating temperature is not to exceed 90°C in wet or dry locations. Voltage rating is 600 volts.

CONDUCTORS: • 8000 series aluminum alloy, solid or compact stranded

INSULATION: • Type XHHW-2 cross-linked polyethylene (XLPE) insulation

ASSEMBLY: • Two, three or four insulated conductors and a bare ground conductor cabled together and covered with a reinforced binder tape

JACKET: • Gray sunlight resistant polyvinyl chloride (PVC) jacket

STANDARDS: • UL 44: Thermoset-Insulated Wires and Cables • UL 854: Standard for Service-Entrance Cables • ASTM B-258, B-800, B-801 • National Electric Code
