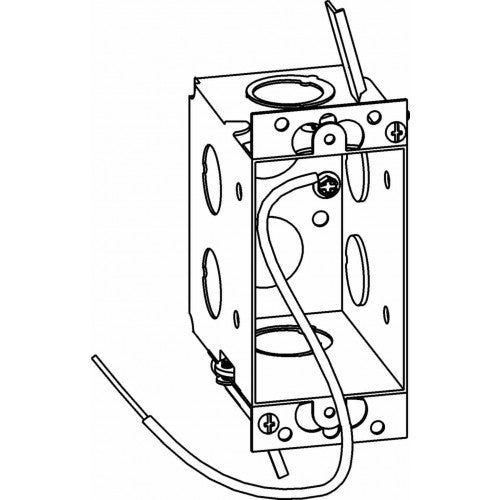

SGM-1 2-3/4” Deep, Gangable 1-Gang Old Work Switch Box
SGM-1 2-3/4” Deep, Gangable 1-Gang Old Work Switch Box
| Category | SWITCH BOX |
| Page | A35 |
| Barcode | 8-35243-00137-4 |
| Description: | |
| Intermediate Depth Gangable Old Work Switch Box | |
| Features: | |
| - Removable side cover for multigang applications - Grips onto finished wall for old work installations - With Pre-assembled 7" Solid Cu. #12AWG Pigtail and 10-32 Ground Screw |
|
| Dimensions: | |
| Width | 2" |
| Height | 3" |
| Depth | 2 - 3/4" |
| Cu In | 14.0 |
| Specifications: | |
| Material | 16 GA Sheet Steel |
| Color | Galvanized |
| No. of Gangs | 1 |
| KO Sides | (4) - 1/2" |
| KO Ends | (2) - MKO |
| KO Bottom | (2) - 1/2" |
| Packaging Info: | |
| Std Pkg | 50 |
| Weight | 31.5 lbs |
| Certifications: | |

|
|
