Hubble

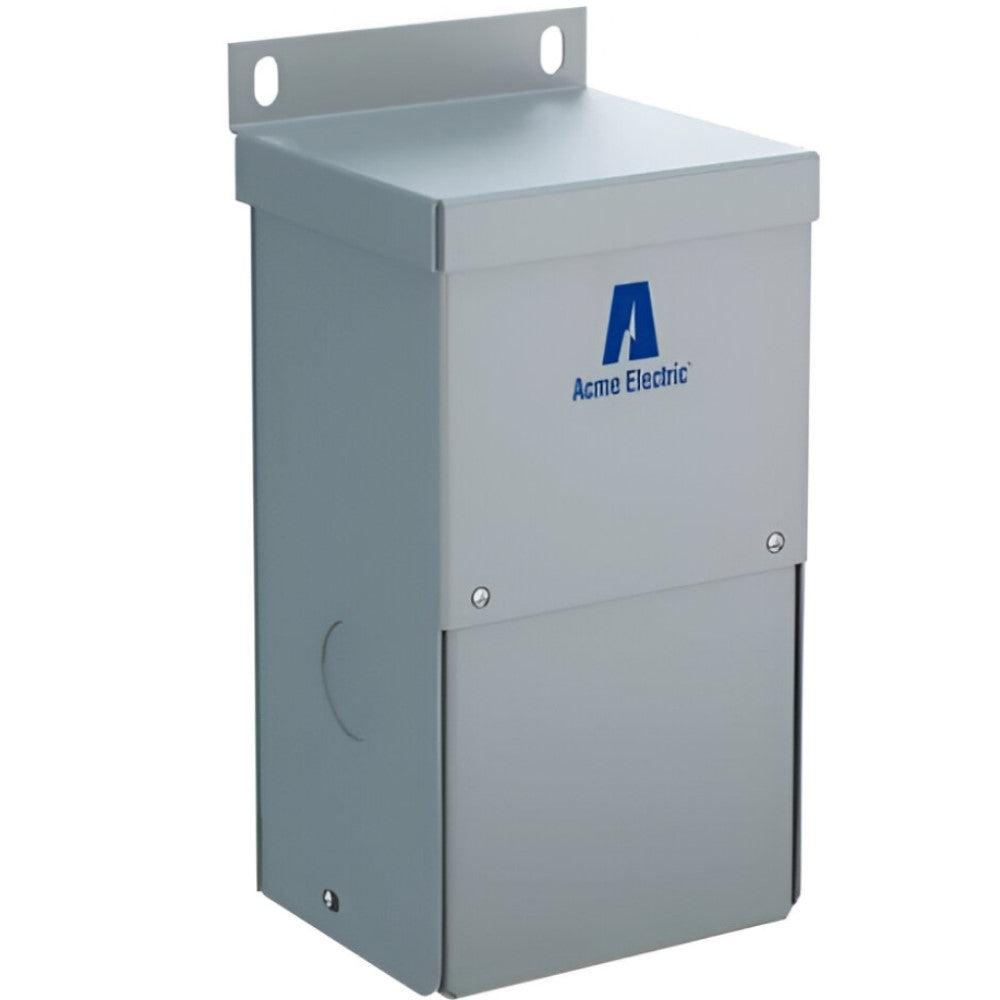

T153005 .10KVA 480/240-120/240 Transformer 1PH
T153005 .10KVA 480/240-120/240 Transformer 1PH
T153005
Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 0.1kVA
- Quite operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Product Details
General
| Construction | Encapsulated |
| Max Temperature Rise | 115 Degrees Celsius |
| Mounting Type | Wall |
| Primary Voltage | 240 X 480 |
| Product Category | Dry Type Distribution Transformer |
| Secondary Voltage | 120/240 V |
| UL Insulation Class | 130°C |
| UPC | 047503085349 |
| Winding Material | CU |
| kVA | 0.1 |
Dimensions
| Dimensions | 3.67 in x 3.89 in x 7.16 in |
| Height | 7.16 in |
| Length | 3.67 in |
| Weight | 5 lb |
| Width | 3.89 in |
Electrical Ratings
| Frequency Rating | 50/60 Hz |
| Primary Voltage | 240 X 480 V |
Certifications and Compliance
| CSA Standard | C22.2 No. 47 |
| Nema Rating | NEMA 3R |
| UL Standard | UL 506 |
