Hubble

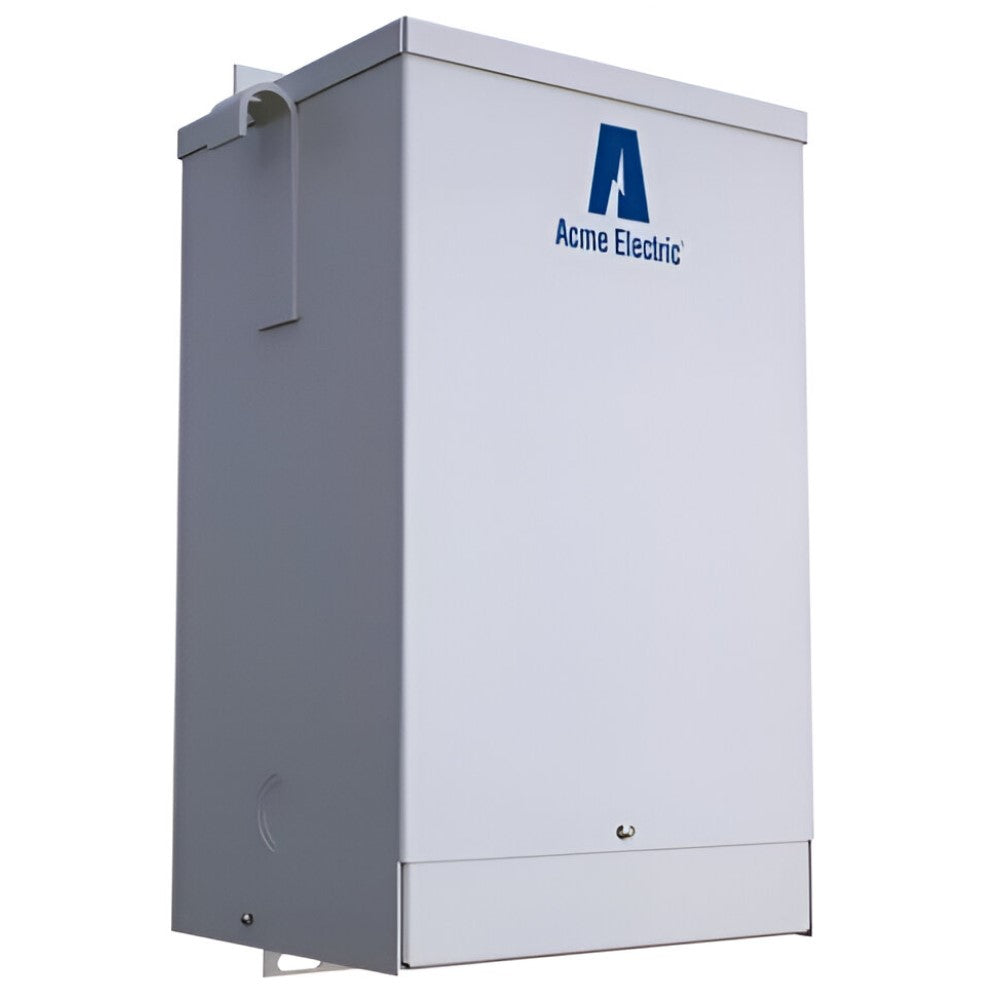

T253014S 5KVA 480/240-120/240 Transformer 1PH
T253014S 5KVA 480/240-120/240 Transformer 1PH
T253014S
Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 5kVA
- Quite operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Product Details
General
| ANFC Taps | 2 |
| BNFC Taps | 2 |
| Construction | Encapsulated |
| Electrostatic Shield | Shielded |
| Max Temperature Rise | 115 Degrees Celsius |
| Mounting Type | Wall |
| Primary Voltage | 240 X 480 |
| Product Category | Dry Type Distribution Transformer |
| Secondary Voltage | 120/240 V |
| Taps % Steps | 2.5% |
| UL Insulation Class | 180°C |
| UPC | 047503732205 |
| Winding Material | CU |
| kVA | 5 |
Dimensions
| Dimensions | 7.13 in x 10.31 in x 14.38 in |
| Height | 14.38 in |
| Length | 7.13 in |
| Weight | 75 lb |
| Width | 10.31 in |
Electrical Ratings
| Frequency Rating | 60 Hz |
| Primary Voltage | 240 X 480 V |
Certifications and Compliance
| CSA Standard | C22.2 No. 47 |
| Nema Rating | NEMA 3R |
| UL Standard | UL 506 |
