Hubble

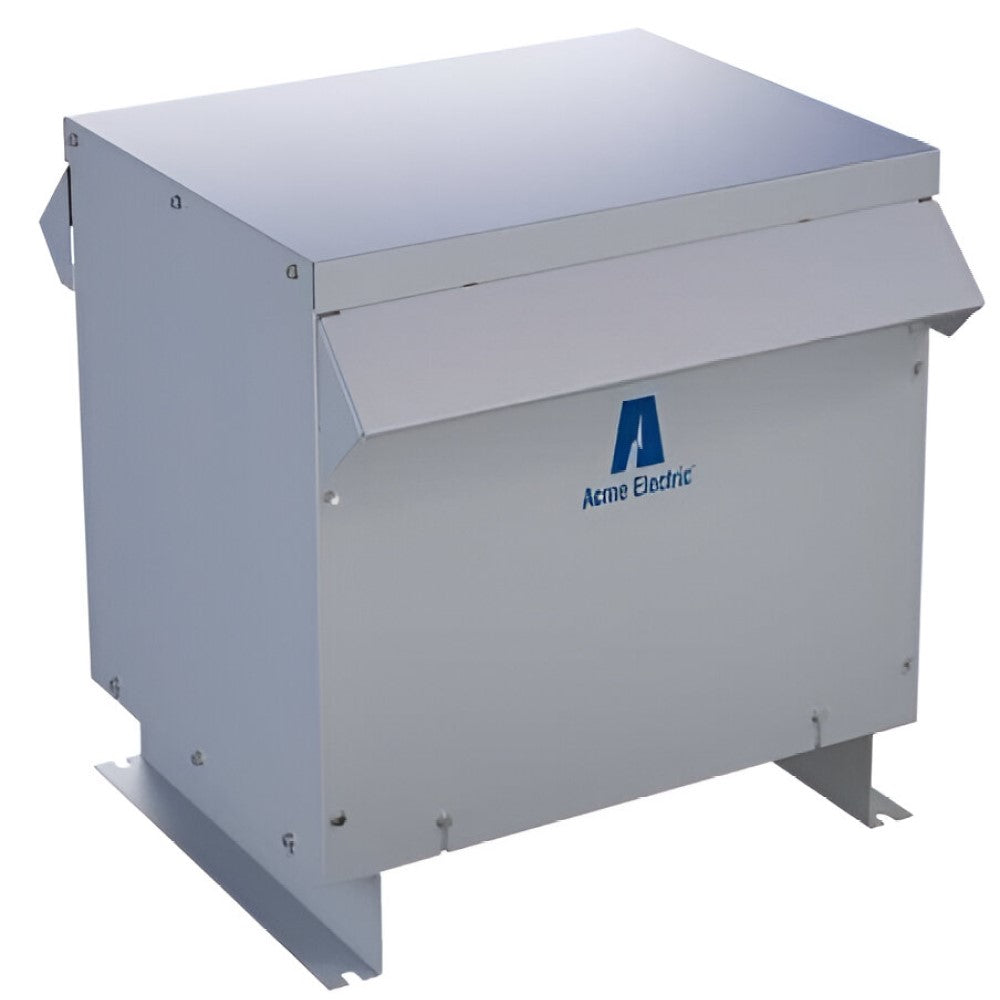

T3030K0023B 30KVA Transformer 480V Pri 120/240V Sec 3PH

T3030K0023B 30KVA Transformer 480V Pri 120/240V Sec 3PH

Call For Pricing and Availability (909) 874-1131

T3030K0023B

Low Voltage Distribution Transformer - Three Phase, 480Δ - 240Δ120V, 30kVA



  • Quite operation with sound levels below NEMA standards

    •

    Product Details

    General

    ANFC Taps 2
    BNFC Taps 4
    Construction Ventilated
    Max Temperature Rise 150 Degrees Celsius
    Mounting Type Floor
    Primary Voltage 480Δ
    Product Category Dry Type Distribution Transformer
    Secondary Voltage 240D 120 V
    Taps % Steps 2.5%
    UL Insulation Class 220°C
    UPC 047503092897
    Winding Material AL
    kVA 30

    Dimensions

    Dimensions 19.37 in x 24.39 in x 25.5 in
    Height 25.5 in
    Length 19.37 in
    Weight 325 lb
    Width 24.39 in

    Electrical Ratings

    Efficiency 98.23%
    Frequency Rating 60 Hz
    Primary Voltage 480D V

    Certifications and Compliance

    CSA Standard C22.2 No. 47
    Dept of Energy Regulation Meets or exceed U.S. DOE 10 CFR Part 431
    Nema Rating NEMA 3R
    UL Standard UL 1561
