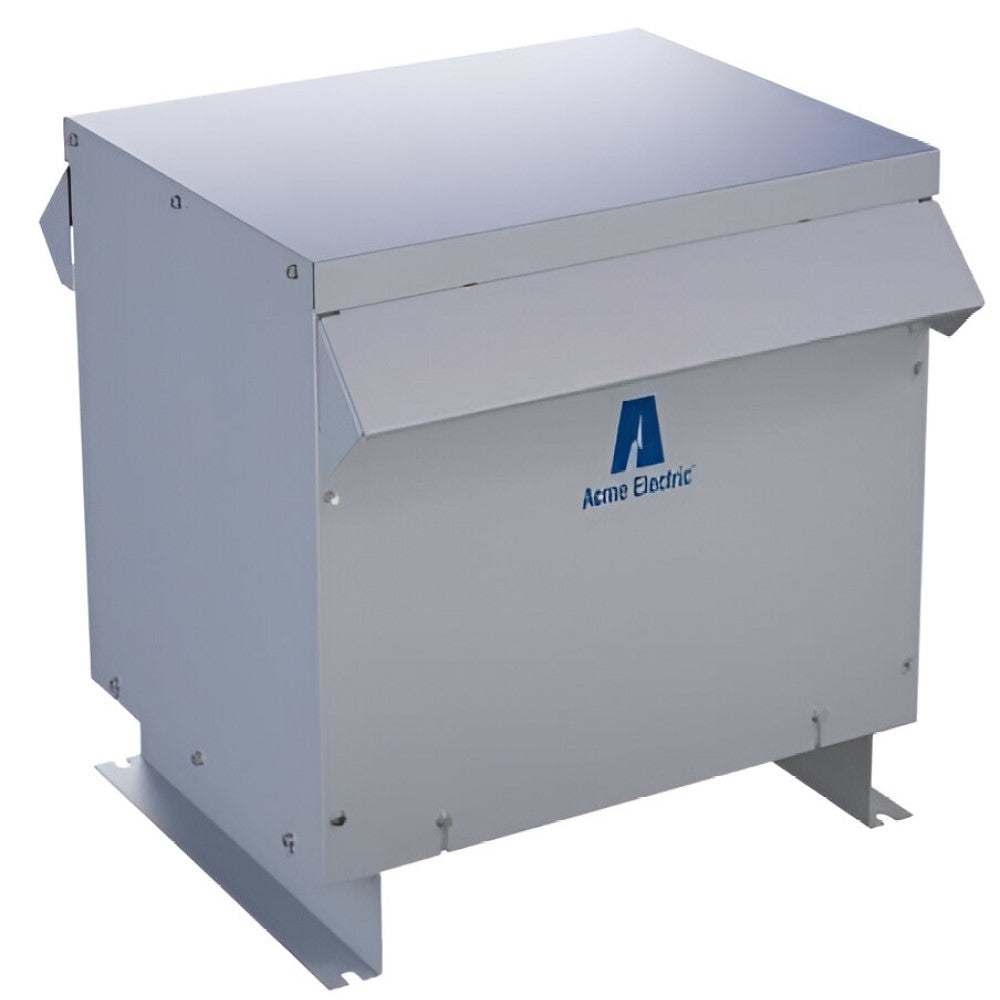

T3112K0023B 112.5KVA Transformer 480V Pri 120/240V Sec 3PH

T3112K0023B 112.5KVA Transformer 480V Pri 120/240V Sec 3PH

Call For Pricing and Availability (909) 874-1131
Low Voltage Distribution Transformer - Three Phase, 480Δ - 240Δ120V, 112.5kVA



  • Quite operation with sound levels below NEMA standards

    • Product Details

    General

    ANFC Taps 2
    BNFC Taps 4
    Construction Ventilated
    Max Temperature Rise 150 Degrees Celsius
    Mounting Type Floor
    Primary Voltage 480Δ
    Product Category Dry Type Distribution Transformer
    Secondary Voltage 240D 120 V
    Taps % Steps 2.5%
    UL Insulation Class 220°C
    UPC 047503093337
    Winding Material AL
    kVA 112.5

    Dimensions

    Dimensions 26.88 in x 31.9 in x 35.47 in
    Height 35.47 in
    Length 26.88 in
    Weight 750 lb
    Width 31.9 in

    Electrical Ratings

    Efficiency 98.74%
    Frequency Rating 60 Hz
    Primary Voltage 480D V

    Certifications and Compliance

    CSA Standard C22.2 No. 47
    Dept of Energy Regulation Meets or exceed U.S. DOE 10 CFR Part 431
    Nema Rating NEMA 3R
    UL Standard UL 1561
    View full details
