Mersen

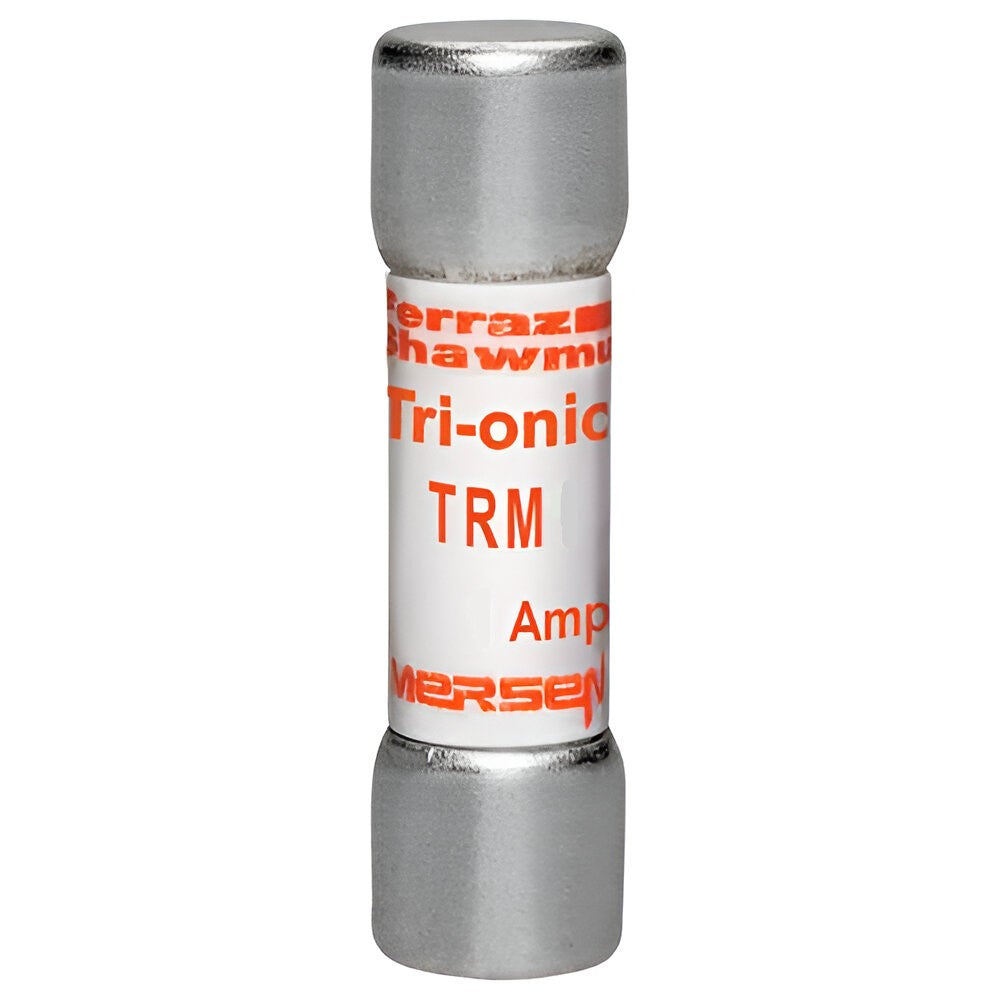

TRM30 30 AMP 250V Class C Fuse
TRM30 30 AMP 250V Class C Fuse
TRM30
Fuse Tri-Onic® 250V 30A Time-Delay Midget TRM Series
APPROVALS & STANDARDS
- UL listed to standard 248-14 File E33925
- CSA Certified to Standard C22.2 No. 248.14
KEY FEATURES & BENEFITS
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
- Numerous ratings for a wide variety of applications
- 250VAC rating in all sizes up to 30A
- Time-delay for circuits with high inrush currrent
- Can be used with UltraSafeTM fuse holders
- 1 1/2" x 13/32" (10mm x 38mm) dimensions
- Small motors
- Small transformers
- Lighting circuits
- Control circuits
